Sachtler System aktiv8 Sideload Fluid Head & Flowtech 75 Tripod with Bag

The aktiv8 flowtech75 Tripod System offers lightning fast SpeedSwap technology, a sideload camera plate, 15 levels (+0) of counterbalance, 7 levels (+0) of pan and tilt drag, and stable support for camera rigs weighing up to 26.5 lb. A padded carrying bag rounds out this tripod kit.

Sachtler aktiv8 Sideload Fluid Head with SpeedLevel & 7-Step Drag for Sachtler Tripods (75mm)
The aktiv8 Sideload Fluid Head uses Sachtler's truly innovative SpeedLevel technology to provide almost instant mounting and leveling of your camera rig on Sachtler 75mm tripod legs. The clamp and stud SpeedLevel system saves precious time leveling your camera rig by eliminating the need to screw on a tie-down knob. Designed for documentary, news, and corporate productions, the aktiv8 supports rigs weighing up to 26.5 pounds. This 75mm ball fluid head features 15 steps of counterbalance and seven steps of pan and tilt drag adjustment, plus zero settings for both balance and drag.

The SpeedLevel technology replaces the traditional head screw and tie-down design with a strong clamp built into the head bowl and a stud component that clamps onto your tripod bowl or other mounting platform, such as a slider. Simply grasp the large lever on the head and pull it up to release the clamp, then press it down to lock your head in place. Partially lifting the lever allows you to quickly and easily level the head.

When used with a separately available flowtech tripod, the aktiv8 enables you to spread the legs flat, getting as low to the ground as your head can without a tie-down knob getting in the way. You can also now mount your head directly onto a slider using a separately available aktiv system stud that screws onto support systems with a 3/8"-16 threaded stud.

The PrismBubble level system is pressed once to illuminate the bubble level to be illuminated or pressed twice to light up both the bubble level and the drag settings, a boon when working in darker environments. The bubble level also has a built-in prism, enabling you to more easily level the head when the legs are at set at maximum height or an awkward angle.

Mount your camera using the included Sideload Plate S that has both a 1/4-20 camera screw and a locating pin to prevent twisting. With a sliding range of 4.7", this head balances quickly to accommodate variously configured rigs The Sachtler aktiv8 head also features a detachable pan bar that can be mounted onto the rosettes on either the right or left side of the head.

aktiv Fluid Head Compatibility
The aktiv6 and aktiv8 fluid heads are compatible with Sachtler 75mm tripods (flowtech 75 aktiv, Tripod 75/2 AL, SpeedLock 75, ENG 75/2 D, and DA 75L)

SpeedLevel Technology
Use the large integrated lever to quickly mount, level, and lock the head on your tripod or other base; lift up to release, lift partially to level, and press down to lock the head firmly in place

SpeedSwap Base
Centered around a metal stud, the SpeedSwap base clamps onto any 75mm bowl tripod or to the separately available slider base; additional bases can be purchased separately to fit a second tripod, dolly, or slider

PrismBubble Level
The illuminated PrismBubble is visible from any height or angle, saving you time when leveling at higher or lower positions

26.5 lb Capacity Fluid Head
This 26.5 lb capacity fluid head is suited for larger DSLRs, mirrorless MFT cameras, and pro-style digital cine cameras

Stepped Counterbalance and Drag
15 steps of counterbalance and seven steps of pan and drag plus zero settings for free spins and tilts

Sideload Plate
The sideload plate has 4.7" of travel for balancing your rig and both 1/4"-20 and 3/8"-16 camera screws

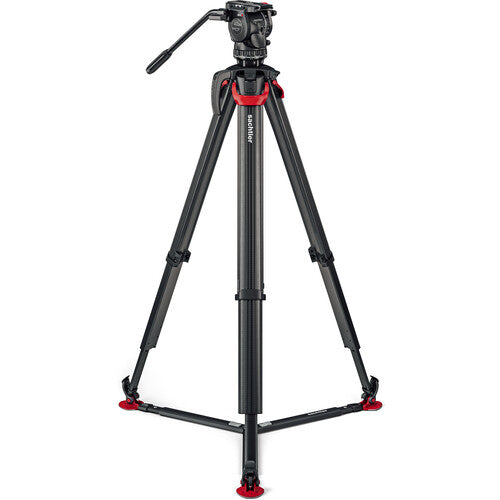

Sachtler flowtech 75 GS Carbon Fiber Tripod with Ground Spreader
The Sachtler flowtech 75 GS Carbon Fiber Tripod with Ground Spreader eschews the common single or double carbon fiber tube design and instead has redesigned the shape of the legs for improved torsional strength. The legs weigh just under 7 pounds yet they can support a payload of up to 44 pounds and extend from a minimum height of 10" to a maximum height of 62.2" when using the included ground spreader. Each leg features a single clamping lever that locks and unlocks the sections.

Each leg extends or retracts independently from the other two, and when it is detached from the spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. You can remove the spreader completely and lock each leg in one of three positions, so you can work without a spreader if you wish. This enables you to spread the legs extremely wide for low shots, while the tripod legs maintain their torsional stability. The dual spikes at the end of each leg provide extra grip when working on softer ground without the spreader. An attachment point and carry handle are included.

Features

• Dual-stage, carbon fiber, 75mm bowl tripod
• The design and construction of the legs provide tremendous torsional stability. In other words, the legs resist twisting when you pan the tripod head.
• The included ground spreader snaps easily onto the dual-spiked feet using a combination elastic and lever attachment system. The rubber feet are removable from the spreader and can be attached directly to the dual spiked feet of the legs for operation on hard/delicate surfaces without the spreader.
• Each leg features a single clamping lever lock design at the top of the leg, near the 75mm bowl. This allows you to loosen all three leg sections from a single location, saving you time while reducing the wear and tear on your body as you don't have to bend down to loosen a leg lock at the bottom to lower or raise the legs.
• The legs incorporate a locking mechanism that enables the legs to move completely freely, suitable when working with a spreader, or to lock at one of three angles, suitable for use when working without a spreader.
