Sachtler

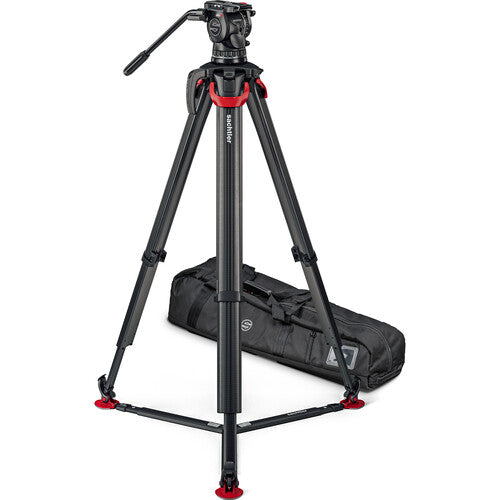

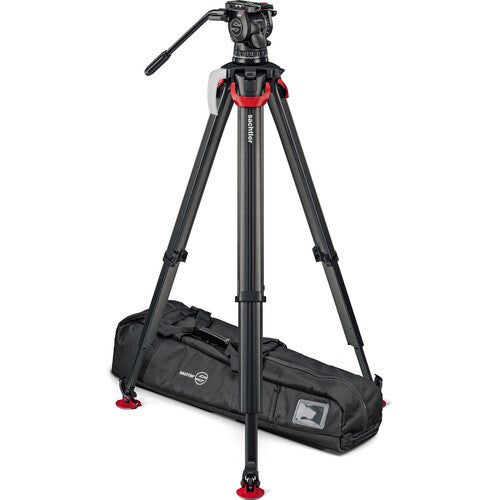

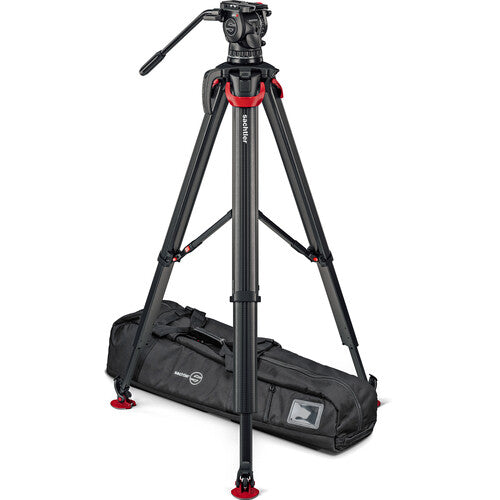

Sachtler System aktiv10 Sideload Fluid Head & Flowtech 100 Tripod with Bag

Sachtler System aktiv10 Sideload Fluid Head & Flowtech 100 Tripod with Bag

Regular price $5,405.50 USD
Regular price Sale price $5,405.50 USD
Sale Sold out
Leg Spreaders
Sachtler aktiv10 Sideload Fluid Head with SpeedLevel & 7-Step Drag for Sachtler Tripods (100mm)
The aktiv10 Sideload Fluid Head uses Sachtler's truly innovative SpeedLevel technology to provide almost instant mounting and leveling of your camera rig on Sachtler 100mm tripod legs. The clamp and stud SpeedLevel system saves precious time leveling your camera rig by eliminating the need to screw on a tie-down knob. Designed for documentary, news, and corporate production, the aktiv10 supports camera rigs weighing up to 26.5 pounds. This 100mm ball fluid head also features 15 steps of counterbalance, seven steps of pan and tilt drag, and zero settings for both balance and drag.

The proprietary Sachtler SpeedLevel technology replaces the traditional head screw and tie-down design with a strong clamp built into the head bowl and a stud component that clamps onto your tripod bowl or other mounting platform, such as a slider. Simply grasp the large lever on the head and pull it up to release the clamp, then press it down to lock your head in place. Partially lifting the lever allows you to quickly and easily level the head.

When used with a separately available flowtech tripod, the aktiv10 enables you to spread the legs flat for extremely low shots without a tie-down knob getting in the way. You can also mount your head directly onto a slider using a separately available aktiv system stud that screws onto support systems with a 3/8"-16 threaded stud.

The active 10's PrismBubble is a built-in prism level with two viewing windows that enable you to more easily level the head when the legs are at set at maximum height or at an awkward angle. The bubble level also has two levels of illumination—press once to light up the bubble level or hold longer to illuminate both the bubble level and the counterbalance and drag settings, a boon when working in darker environments.

Mount your camera using the included Sideload Plate S that has both a 1/4-20 camera screw and a locating pin to prevent twisting. With a sliding range of 4.7", this head balances quickly to accommodate variously configured rigs. The Sachtler aktiv10 head also features a detachable pan bar that can be mounted onto the rosettes on either the right or left side of the head.

aktiv Fluid Head Compatibility
The aktiv10 is compatible with Sachtler 100mm tripods (flowtech 100, ENG 2 CF, ENG 2D, ENG 2 CF HD, SpeedLock, and SpeedLock CF HD)

SpeedLevel Technology
Use the large integrated lever to quickly mount, level, and lock the head on your tripod or other base; lift up to release, lift partially to level, and press down to lock the head firmly in place

SpeedSwap Base
Centered around a metal stud, the SpeedSwap base clamps onto any 100mm bowl tripod or the separately available slider base; additional bases can be purchased separately to fit a second tripod, dolly, or slider

PrismBubble Level
The illuminated PrismBubble is visible from any height or angle, saving you time when leveling at higher or lower positions

26.5 lb Capacity Fluid Head
This 26.5 lb capacity fluid head is suited for pro-style digital cine cameras and larger DSLR and mirrorless camera rigs Stepped Counterbalance and Drag Fifteen steps of counterbalance and seven steps of pan and drag plus zero settings, for free spins and tilts

Sideload Plate S
The Sideload Plate S has 4.7" of travel for balancing your rig and both a 1/4"-20 camera screw and a locating pin Sachtler flowtech 100 Carbon Fiber Tripod with Rubber Feet The lightweight Sachtler flowtech 100 Carbon Fiber Tripod offers notable stability and quick setup and adjustments for payloads up to 66.1 lb. The novel flowtech design features quick release locks at the top of the legs, eliminating the need to stoop while adjusting the tripod height. All three legs can be deployed simultaneously to quickly find their individual levels on uneven ground.

The flowtech 100's versatile leg hinges adjust freely and collapse to a transport length of 26.5". Additional ergonomic features include a flat leg design that's more comfortable when carrying it on your shoulder and magnetic locks that neatly snap the legs together for travel. Three handy 3/8"-16 threaded mounts can be used to attach a variety of accessories.

Weighing only 7.5 pounds with its rubber feet, the flowtech 100 extends to a maximum height of 60". Each leg features a single clamping lever that quickly and easily locks and unlocks the sections. Designed with dual-spiked feet, this 100mm bowl tripod includes rubber feet that feature a quick release design for easy attaching and removal.

Features
  • Dual-stage, carbon fiber 100mm bowl tripod Supports up to 66.1 pounds, yet weighs only 7.5 pounds
  • High torsional stability prevents the legs from twisting when panning your head
  • Flat, ergonomic leg design for more comfortable over-the-shoulder carrying
  • A flexible hinge design enables high and low angles
  • A mechanism at the top of the tripod quickly releases all three sections simultaneously, enabling speedy setups
  • Dual-spiked feet tripod includes quick release rubber feet for delicate or slippery surfaces
  • Magnetic locks snap the legs together for transport, but easily release for setup
