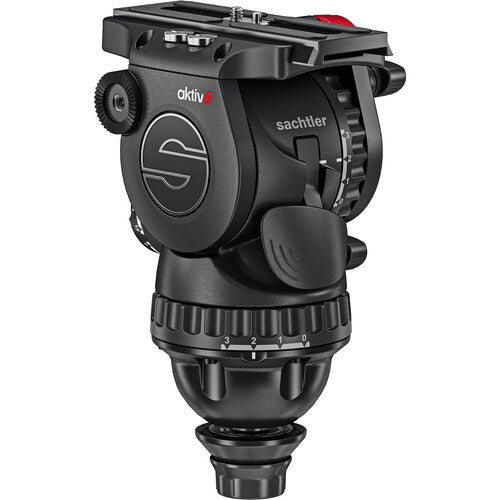

Sachtler aktiv6 Fluid Head

The SpeedLevel technology replaces the traditional head screw and tie-down design with a strong clamp built into the head bowl and a stud component that clamps onto your tripod bowl or other mounting platform, such as a slider. Simply grasp the large lever on the head and pull it up to release the clamp, then press it down to lock your head in place. Partially lifting the lever allows you to quickly and easily level the head.

When used with a separately available flowtech tripod, the activ6 enables you to spread the legs flat, getting as low to the ground as your head can without a tie-down knob getting in the way. You can also mount your head directly onto a slider using a separately available aktiv system stud that screws onto support systems with a 3/8"-16 threaded stud.

The PrismBubble level system is pressed once to illuminate the bubble level to be illuminated or pressed twice to light up both the bubble level and the drag settings, a boon when working in darker environments. The bubble level also has a built-in prism, enabling you to more easily level the head when the legs are at set at maximum height or an awkward angle.

Mount your camera using the aktiv6 sliding balance plate with 1/4-20" screw and locating pin. With a sliding range of 4.7", this head adapts quickly to balance variously configured rigs. The Sachtler aktiv6 head also features a detachable pan bar that can be mounted onto the rosettes on either the right or left side of the head.

aktiv Fluid Head Compatibility
The aktiv6 and aktiv8 fluid heads are compatible with Sachtler 75mm tripods (flowtech 75 aktiv, Tripod 75/2 AL, SpeedLock 75, ENG 75/2 D, and DA 75L)

SpeedLevel Technology
Use the large integrated lever to quickly mount, level, and lock the head on your tripod or other base; lift up to release, lift partially to level, and press down to lock the head firmly in place

SpeedSwap Base
Centered around a metal stud, the SpeedSwap base clamps onto any 75mm bowl tripod or to the separately available slider base; additional bases can be purchased separately to fit a second tripod, dolly, or slider

PrismBubble Level
The illuminated PrismBubble is visible from any height or angle, saving you time when leveling at higher or lower positions

17.6 lb Capacity Fluid Head
This 17.6 lb capacity fluid head is suited for larger DSLRs, mirrorless MFT cameras, and for pro-style digital cine cameras

Stepped Counterbalance and Drag
15 steps of counterbalance and three steps of pan and drag plus zero settings for free spins and tilts

Sideload Plate
The sideload plate has 4.7" of travel for balancing your rig and both a 1/4"-20 screw and a locating pin to prevent twisting

1/4"-20 and 3/8"-16 Tie-Down Screws
The head ships with an additional 1/4"-20 and 3/8"-16 tie-down screw mounted on threaded holes at the top of the head
