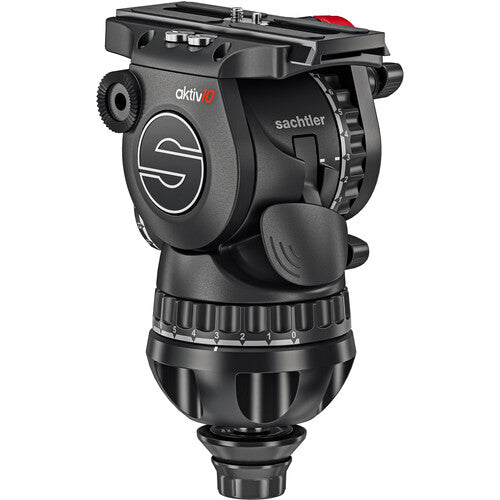

Sachtler aktiv10 Fluid Head

The proprietary Sachtler SpeedLevel technology replaces the traditional head screw and tie-down design with a strong clamp built into the head bowl and a stud component that clamps onto your tripod bowl or other mounting platform, such as a slider. Simply grasp the large lever on the head and pull it up to release the clamp, then press it down to lock your head in place. Partially lifting the lever allows you to quickly and easily level the head.

When used with a separately available flowtech tripod, the aktiv10 enables you to spread the legs flat for extremely low shots without a tie-down knob getting in the way. You can also mount your head directly onto a slider using a separately available aktiv system stud that screws onto support systems with a 3/8"-16 threaded stud.

The active 10's PrismBubble is a built-in prism level with two viewing windows that enable you to more easily level the head when the legs are at set at maximum height or at an awkward angle. The bubble level also has two levels of illumination—press once to light up the bubble level or hold longer to illuminate both the bubble level and the counterbalance and drag settings, a boon when working in darker environments.

Mount your camera using the included Sideload Plate S that has both a 1/4-20 camera screw and a locating pin to prevent twisting. With a sliding range of 4.7", this head balances quickly to accommodate variously configured rigs. The Sachtler aktiv10 head also features a detachable pan bar that can be mounted onto the rosettes on either the right or left side of the head.

aktiv Fluid Head Compatibility
The aktiv10 is compatible with Sachtler 100mm tripods (flowtech 100, ENG 2 CF, ENG 2D, ENG 2 CF HD, SpeedLock, and SpeedLock CF HD)

SpeedLevel Technology
Use the large integrated lever to quickly mount, level, and lock the head on your tripod or other base; lift up to release, lift partially to level, and press down to lock the head firmly in place

SpeedSwap Base
Centered around a metal stud, the SpeedSwap base clamps onto any 100mm bowl tripod or the separately available slider base; additional bases can be purchased separately to fit a second tripod, dolly, or slider

PrismBubble Level
The illuminated PrismBubble is visible from any height or angle, saving you time when leveling at higher or lower positions

26.5 lb Capacity Fluid Head
This 26.5 lb capacity fluid head is suited for pro-style digital cine cameras and larger DSLR and mirrorless camera rigs

Stepped Counterbalance and Drag
Fifteen steps of counterbalance and seven steps of pan and drag plus zero settings, for free spins and tilts

Sideload Plate S
The Sideload Plate S has 4.7" of travel for balancing your rig and both a 1/4"-20 camera screw and a locating pin
